In this blog, I’m summarizing key concepts and ideas i take way from book “Building Multi-Tenant SaaS Architectures” by Tod Golding, which I started reading while working on Tenant Management System at Money Forward.

To be honest this book provides structured view of SaaS and multi-tenancy, it clearly connects business requirements with technical architecture decisions and broadened my understanding of SaaS ecosystem, especially the non-obvious challenges engineers face when designing, scaling, and evolving multi-tenant systems.

This blog focuses on those architectural concepts from developer’s POV.

Getting into SaaS

Classic Software Model vs SaaS

In classic software model, applications were deployed on customer owned infrastructure. Each customer environment was independently configured, deployed, and operated. Vendors shipped versions; customers ran them.

This led to per-customer system administration, slow and risky upgrades, version fragmentation, and limited runtime visibility for vendors. Operational effort scaled linearly with the number of customers. The model optimized for delivery and sales, not for scalability or continuous operation.

SaaS Changes the Model: it’s Tenants now, Not Customers

SaaS moves applications to vendor-managed infrastructure and replaces customers with tenants. The platform owns deployment, upgrades, monitoring, and reliability.

This enables centralized control, shared infrastructure, continuous delivery, faster feature rollout, and flexible pricing models. At the same time, complexity shifts into the platform. Every request must be tenant-aware. Isolation, noisy-neighbor prevention, tenant context resolution, and non-disruptive deployments become core engineering concerns.

SaaS moved complexity to runtime and architectural, from deployment-time.

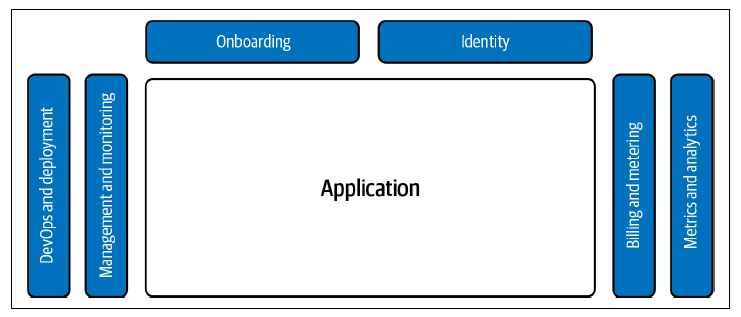

SaaS Is More Than Shared Infrastructure

SaaS is not just applications running on shared infrastructure.

A SaaS platform includes control-plane systems such as onboarding, tenant management, identity, billing, metering, and observability. All of these must be designed for multi-tenancy, even if the application itself is simple.

SaaS is platform-driven business model. which enables continuous delivery, operational efficiency, and frictionless tenant lifecycle management. The defining property of SaaS is not “software delivered online,” but the ability to operate, evolve, and scale a single system safely across many tenants. Also Hybrid models such as MSPs still exist. They combine SaaS-style centralized operations with customer-installed or tenant-specific deployments, usually due to legacy or regulatory constraints.

Breaking SaaS Multi Tenant Architecture

Multi-tenant SaaS architectures are typically divided into two major planes:

• Control plane
• Application plane

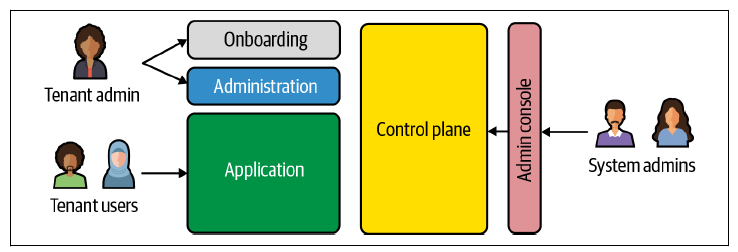

If you see below image, I think you can easily get to know the diff.

Control Plane Responsibilities

The control plane handles cross tenant and operational concerns. It owns tenant lifecycle and platform-wide policies but does not implement tenant specific business logic.

Typical responsibilities can be tenant onboarding and lifecycle management, identity and access management, billing and metering, entitlement and tier management, system wide metrics, and governance. The control plane is tenant aware but intentionally generic, allowing it to operate uniformly across all tenants.

Application Plane Responsibilities

The application plane provides product functionality also enforcing tenant boundaries. This is where most multi-tenancy complexity surfaces at runtime.

Key concerns include tenant context propagation, isolation guarantees, data partitioning, tenant-aware routing (especially in siloed or hybrid deployments), and context-aware business logic. In siloed models, the application plane may also manage tenant-specific deployments or routing to isolated stacks.

The primary challenge in this plane is maintaining correctness and isolation without degrading performance or developer velocity.

User Roles and Access Boundaries

SaaS platforms typically define three distinct user categories:

• tenant users who consume the product
• tenant admins who manage users and configuration within a tenant, and
• system admins who operate the platform across all tenants.

System admins usually require dedicated admin interface to troubleshoot issues, manage tenants, and handle escalations. Tenant admins often use separate admin console to manage users and settings across one or more SaaS applications. Depending on coupling and ownership, these admin interfaces may live in the control plane or the application plane.

note: There is no single correct multi-tenant architecture. Most SaaS systems evolve over time, shifting responsibilities between planes as scale, compliance, and operational constraints change.

SaaS Deployement models

SaaS deployment models define how tenants are isolated and how infrastructure is shared. Most platforms evolve toward hybrids rather than using a single model. At a high level, deployments fall into siloed (isolated) and pooled (shared) categories.

Full-Stack Siloed Deployment

Each tenant runs in a fully isolated application stack, typically including separate deployments and databases. This provides strong isolation, a clear blast radius, and simple cost attribution. The downside is higher infrastructure cost, slower onboarding, and increased operational complexity. This model is usually reserved for regulated or high-value enterprise tenants.

Full-Stack Pooled Deployment

All tenants share the same application stack, with isolation enforced at the application and data layers using tenant context. This model optimizes for cost and scalability but requires strict tenant-scoped authorization, data isolation, rate limiting, and protection against noisy-neighbor issues. Failures have a larger blast radius.

Hybrid Deployment

Most tenants run on pooled infrastructure, while selected tenants are fully siloed due to compliance, performance, or contractual requirements. This model balances cost and isolation but introduces complexity in onboarding, routing, and operations.

Mixed-Mode Deployment

Only specific components are isolated, such as databases or compute-heavy services, while the rest of the stack remains pooled. This reduces cost compared to full siloing but requires well-defined service boundaries to avoid isolation leaks.

Pod-Based Deployment

Tenants are grouped into pods, each running a shared stack with fixed capacity. New pods are added as the system scales. This limits blast radius while preserving many benefits of pooled deployments and aligns well with Kubernetes clusters or cloud account boundaries.

Onboarding and Identity

Onboarding and identity belong to control plane. Before application goes into prod, the platform must reliably create tenants, provision required resources, and establish tenant boundaries.

Onboarding is workflow, not a single operation. It is typically triggered either from an internal admin console or via self-service signup. The flow creates tenant metadata, assigns plan/tier, provisions infrastructure depending on deployment model (silo or pooled), initializes identity and access, and configures quotas or billing. Because onboarding is distributed and failure-prone, each step must be idempotent and tracked using explicit states.

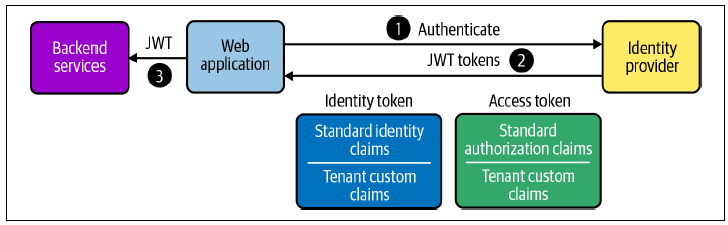

Identity in SaaS must be tenant-aware. Most platforms use OIDC and issue JWTs that include both user identity and tenant context through custom claims. This allows services to enforce tenant-scoped authorization without additional lookups.

In more flexible setups, tenant context is resolved separately from authentication. The IdP authenticates the user, while deicated service resolves tenant membership and roles. This approach simplifies multi-tenant users and multi-IdP support.

For enterprise customers, SaaS platforms often support federated identity using SAML or OIDC. Since external IdPs rarely include tenant identifiers, tenant context must be resolved from IdP configuration, issuer, or domain mappings. SCIM is commonly used alongside federation for user and group provisioning but does not handle authentication or tenant resolution.

Some platforms derive tenant context from request metadata, such as subdomain-based tenancy. While simple, this model is limited when users belong to multiple tenants or when federation is required.

Tenant Management

tenant management is core of part of control plane and it invloves lot of things like onboarding, offboarding, billing, Tenant attributes, Tenent identity configs, routing configs (based on silo and pool) and tenant user.

Tenant Identifier: should be globally unique, immutable (like GUID) and should avoid business identifiers like domain, org name which might change in future.

Lifecycle Management

• Explicit lifecycle states: provisioning → active → suspended → deactivated → decommissioned
• State transitions must be idempotent and auditable.
• Decommissioning should be compliant with retention policies

Tier / Plan Changes

• Tier changes are effectively infra + policy migrations, not just billing updates.
• Common challenges include Provisioning new resources (or moving to shared ones) Updating routing rules and Migrating existing tenant state safely.
• Feature flags help decouple rollout from deployment, but data shape and backward compatibility must be guaranteed
• Complexity increases significantly in hybrid or siloed models.

Tenant Authentication and Routing

Tenant authentication and routing constructs are generally at front door of the system. Bacause, this decides tenant context and downstream authentication, authorization, and shape routing decisions.

Most SaaS platforms covers one of following domain patters along with fully owned domain:

The subdomain per tenant model

Each tenant is mapped to a platform-managed subdomain (e.g, tenant-a.app.com). This suited for Simplifies certificate management, easy tenant resolution and for pooled architectures (with centralized routing). But this restricts the tenants brand ownership and stricter tenant isolations.

The vanity domain-per-tenant model

Here tenants bring their own custom domain (e.g., login.tenant-a.com). This requires DNS ownership verification, dynamic host-based routing, runtime lookup for tenant context etc.

Also note that domain based tenant onboarding should be relatively lightweight and doesn’t generally requires application redeploys/static routing rules.

tenant resolution Some platforms tries tenant resolution via user identifiers (e.g., email domain → tenant). but this approach breaks when consultants or external users span multiple tenants, so generally production systems typically resolve tenant context before authentication. When tenant context cannot be derived deterministically (shared domains, cross-tenant users), the system must explicitly introduce tenant selection.

note: Federated IdPs introduce additional constraints like Custom claim injection, Tenant-specific authorization logic may need to live outside the IdP.

Routing Authenticated Tenants

Once tenant context is established, routing becomes a function of architecture choice.

1. Serverless Routing

• API Gateway / Lambda can resolve tenant at the edge.
• Enables per tenant throttling, auth policies, and even isolated execution paths.
• Infrastructure per tenant is possible but increases provisioning complexity.

2. Container-Based Routing (Kubernetes)

• Ingress layer resolves domain and tenant context.
• Envoy/Istio handles L7 routing, mTLS, and policy enforcement.
• Tenant isolation can be achieved via namespaces, workload identity, or service mesh policies.
• Scales well for mixed isolation requirements but demands strong platform governance.

In all cases, the invariant remains: tenant context must be resolved early, propagated consistently, and enforced everywhere.

Building Multi-Tenant Services

when building Multi-tenancy services, It is adivisible to start from the domain: SaaS systems usually align well with business subdomains, DDD, and event-driven patterns. Early decisions around compute (containers, serverless, dedicated) and storage (shared DB, schema-per-tenant, DB-per-tenant) directly define your service architecture, scalability, and isolation guarantees. The “noisy neighbor” problem is inevitable unless you explicitly identify services that need stronger isolation and design or deploy them separately.

And inside service, tenant context is everywhere like request handling, logging, metrics, auth, and data access. Enforce isolation at the right layers (network, app, DB), but keep tenant resolution out of business logic. Centralize it using interception patterns like gateways, middleware, sidecars, or Lambda layers. If your metrics aren’t broken down per tenant, your multi-tenancy design is incomplete.

Data Partitioning

Data partitioning directly impacts SLAs, tenant experience, blast radius, and operational complexity. It is always better to default to pooled model and progressively move toward siloed isolation only when workloads, compliance, or performance demand it. Over isolating early leads to management overhead and poor storage right-sizing, while under-isolating increases noisy-neighbor risk. Throughput limits and throttling must be enforced per tenant regardless of model, or-else shared infrastructure becomes unpredictable under load.

Partitioning strategies also varied by storage type:

• Relational databases rely on pooled schemas, tenant-based sharding, or fully siloed databases;
• NoSQL systems favor partition keys, sharding, and tuning options to control hot tenants;
• object storage and OpenSearch introduce their own pooled vs siloed trade-offs around cost and query isolation.

In practice, most systems evolve into a mixed-mode model, combining pooled and siloed approaches based on tenant tier and data lifecycle. Throughout all models, enforce strong multi-tenant data security, controlled access paths, and clear ownership boundaries to prevent accidental cross-tenant exposure.

Tenant Isolation

Tenant isolation exists from full-stack isolation (dedicated infra per tenant) to resource-level and item level isolation within shared services. Strong isolation improves safety and blast-radius control but increases cost and operational complexity, so choosing the right model is business and technical trade-off.

At application layer, isolation is enforced through authorization, RBAC, and tenant-aware access controls, often implemented via interception patterns rather than business logic. Infrastructure isolation (separate clusters, namespaces, accounts) provides stronger guarantees but reduces flexibility. Effective systems combine deployment-time isolation (how services are deployed) with runtime isolation (how requests are handled), using middleware, gateways, or sidecars to centralize enforcement.

As the platform scales, isolation policies must be explicitly managed, versioned, and observable to prevent drift and accidental cross-tenant exposure.

Conclusion

Building multi-tenant SaaS system is fundamentally about owning complexity wantedly. SaaS shifts responsibility from customers to platform, which means tenant awareness, isolation, data partitioning, routing, and lifecycle management are no longer optional, they are core system properties.

There is no single “correct” architecture. Real SaaS platforms evolve from pooled to hybrid and mixed models as scale, compliance, and customer value change. The key is to design for explicit tenant boundaries, centralized control planes, early tenant resolution, and measurable isolation, while keeping business logic clean and adaptable. If multi-tenancy is not observable, enforceable, and evolvable, it will eventually break usually at scale, and always at the worst possible time.

Most SaaS outages are process failures, not code failures.
